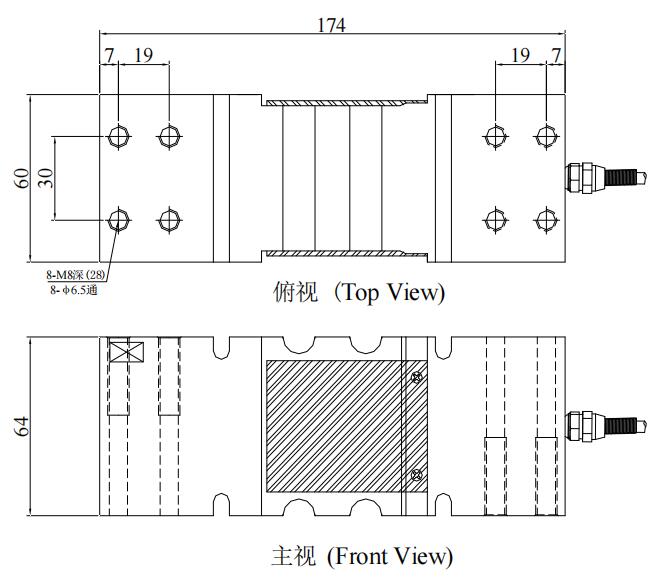

Mavin NA3G
Additional information
| Rated Capacities | 800kg |
|---|---|
| Rated Output | 2.0 mV/V±10% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.02 %R.O. |
| 30mins Creep | 0.02 %R.O. |
| 30mins Return | 0.02 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 390±15 Ω |
| Output Impedance | 350±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Stainless Steel |
| Protection Class | IP67 / IP68 |
| Cable | φ5.6 ×3 m gopher protected cable |
| Recommended Platform Size | 600 × 800 mm |
| Mode of Connection | Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG- |
